Das BEOCORD 1100 ersetzte 1967 das BEOCORD 1000.

K5_7-1

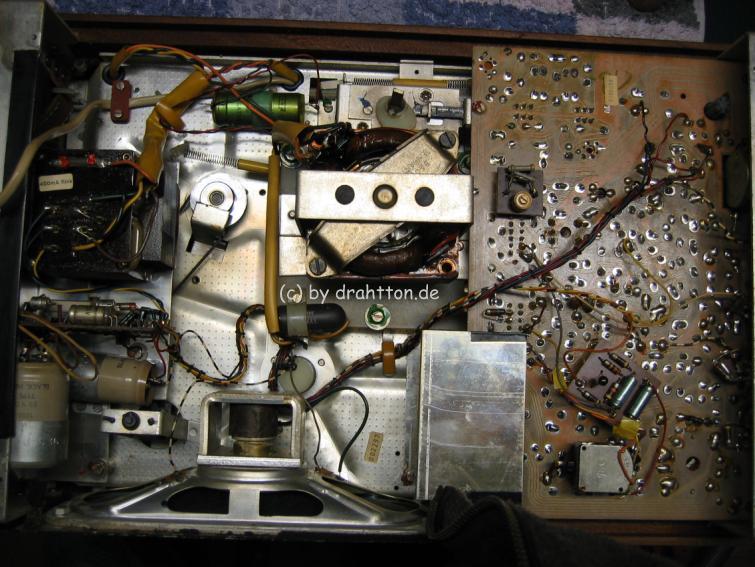

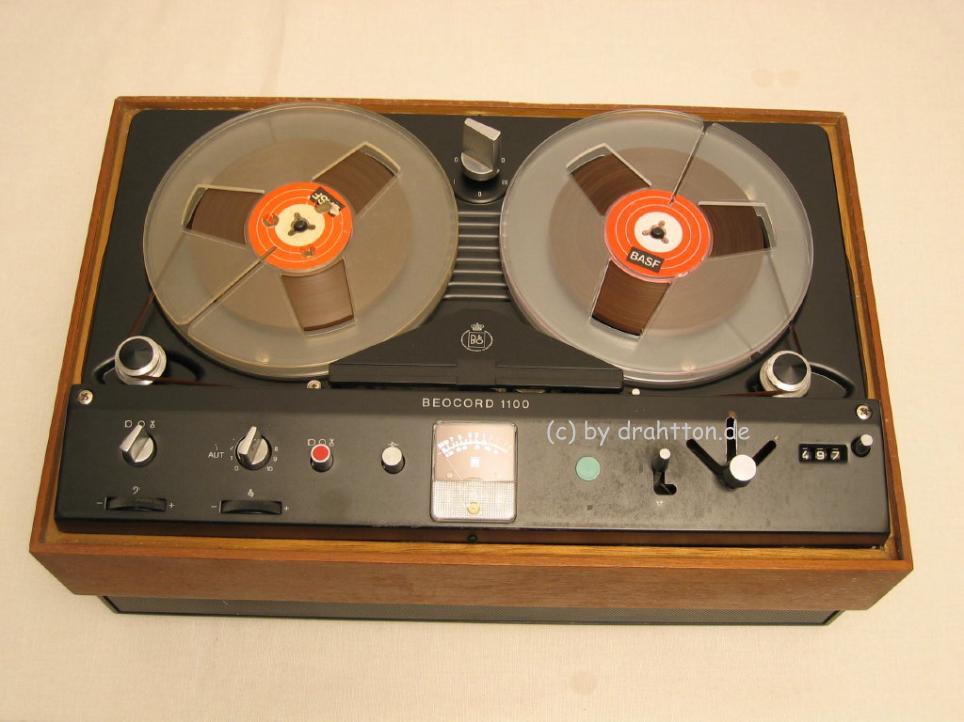

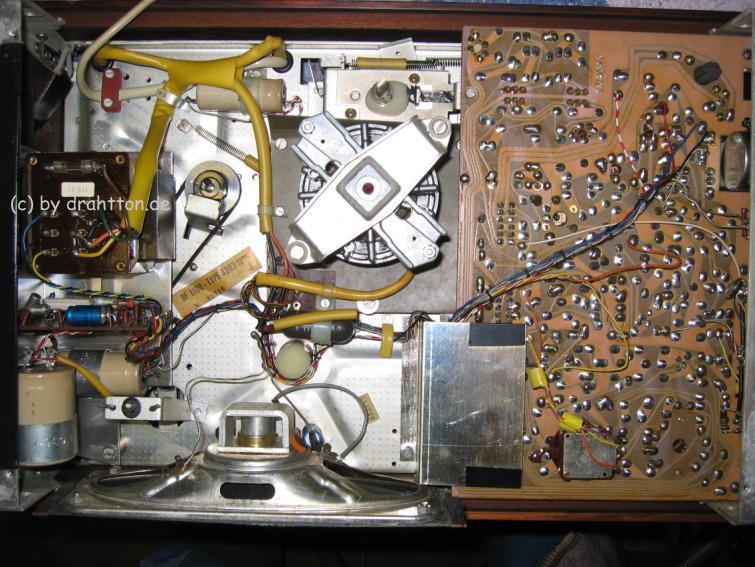

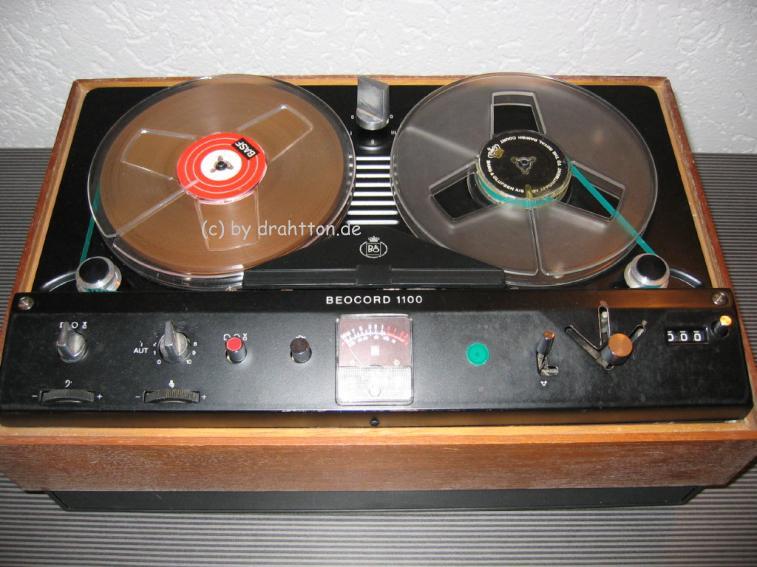

Beocord 1100 Type 4203     (1967  - 1969)

"Beocord 1100 - an all-transistor 2-track hi-fi mono recorder possessing a maximum of technical
features: 3 tape speeds: 4.75cm/sec (recording of speech), 9.5cm/sec (recording of gramophone and
AM radio), 19cm/se (recording of FM radio and direct recordings of music). All reel sizes - including
the 18cm reels. The amplifier, built on a printed integrated circuit principle, delivers no less than
10 watts of undistorted power output (built-in speaker 3 watts; extension speaker 10 watts).
Automatic recording level control which may be switched on and off as desired. Two smooth-running
specially engineered slack absorbers take up slack, ensuring absolutely smooth starting and stopping
at all tape speeds. Electronic overload protection. Variable monitoring of the recorded signal. Top-quality
low-noise tape drive motor built on rugged anti-torsion steel chassis. May be used as a separate microphone,
radio, gramophone or guitar amplifier. Smooth-operating tape control lever. Large V.U. meter for visual
recording level monitoring, input selector for gramophone, radio and microphone. Separate bass and
treble controls. Pause control lever with editing position. Automatic tape stop at end of tape and if tape
breaks, also with metal foil. Tape counter. Speed selector with built-in on/off switch. Fast forward and
reverse rewind. Output jacks for external speaker and low-impedance headphones. All jack plugs are
international DIN standard types. Built-in splicing device. Permits recording from one tape recorder to
another. Pilot lamp indicating that the instrument is switched on.

K5_7-4

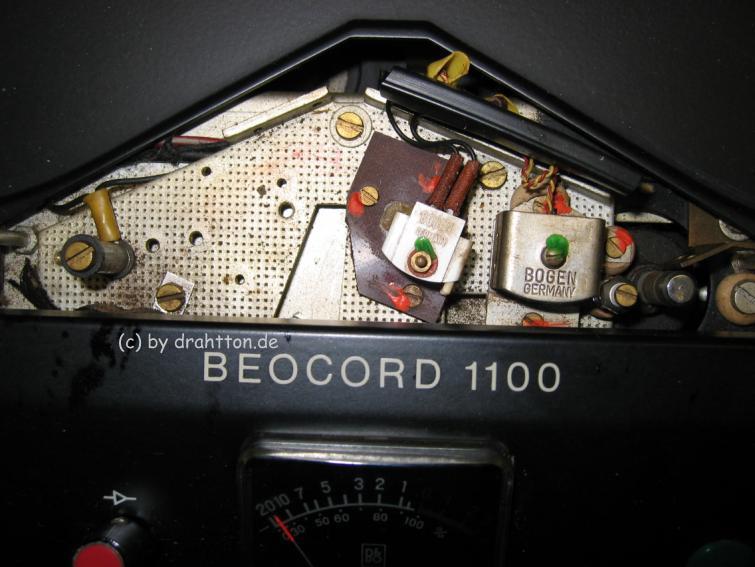

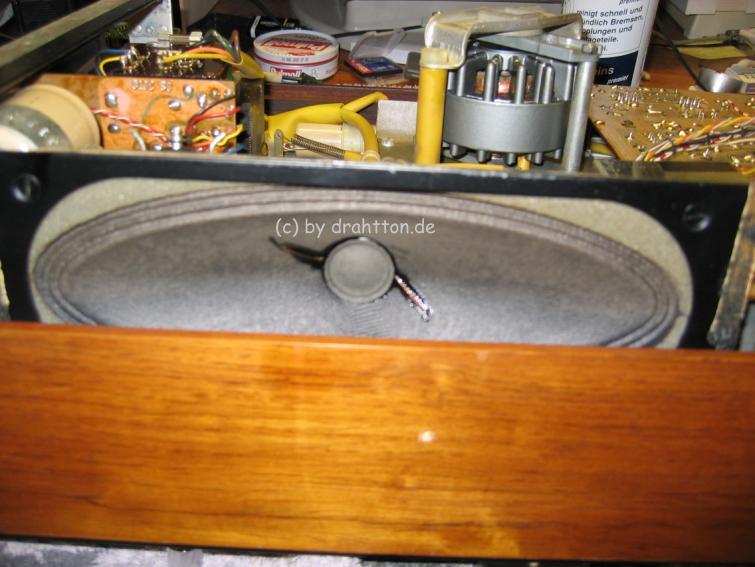

Der Klang des eingebauten Lautsprechers kann die Aufnahmequalität natürlich nicht ausschöpfen,
dennoch ist er bei der Aufnahme und dem „Anfahren“ einer bestimmten Aufnahme sehr praktisch.

Spartanisch – oder besser: übersichtlich!

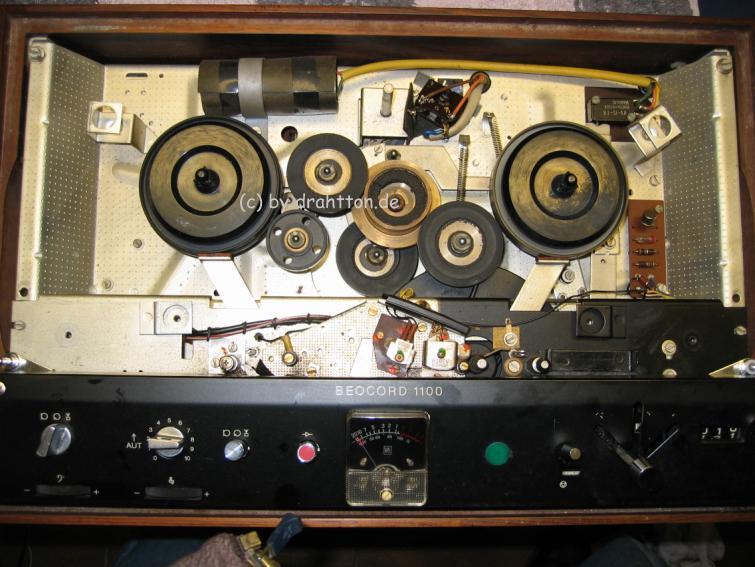

The Beocord 1100 is a convenient portable model (weighs 13,2)

Beocord 1100  Specifications:
Type: 4203

Power supply: 110 - 130 - 220 - 240 volts AC
Frequency 50 Hz
Power consumption: 10 - 70 watts
Tape Transport:
 Number of tracks 19 - 9,5 - 4,75 cm/sec
 Reel size 2 tracks record and playback
 Playing times Max 18cm
 Fast tape motion 150 sec. in both directions with LP tape, 540 M
 Tape counter 3-digit readout (with pushbutton reset)
 Wow and flutter Measured according to DIN 45,507
 Tape speed variation Less than +/- 2 %

Tape stop At end of tape and if tape breaks, also where metal foil is fitted  on tape, during normal forward tape motion.
Slack absorber Prevents jerks when tape is stopped and started.  Tape twisting when using thin tapes (such as 3-play tapes can be avoided by bringing the tape outside the slack absorbers )

Power output: 10 watts (approx. 3 watts with built-in speaker, 10 watts with external speaker)
 Frequency response 19 cm/sec. : 30 - 20,000 Hz (+/- 2 dB 40 - 16,000 Hz)
 9,5 cm/sec.: 30 - 16,000 Hz ( +/- 2 dB 40 - 12,000 Hz)
 4,75 cm/sec.: 50 - 8,000 Hz ( +/- 2 dB 50 - 6,000 Hz)
 Signal-to-noise ratio Better than 55 dB at 19 cm/sec.

Erasure 60 kHz erase oscillator combined with output stage. Ferrite erase head with twin gap.
 Tone Controls Bass control range: + 14 dB - 15 dB at 40 Hz
 Treble control range: +6 dB -12 dB at 10,000 Hz
 Connections: Inputs Microphone 50/200 ohms - 35 µV/1000 Hz
 Radio: 47 kohms - 1,6 mV / 1000 Hz
 Gramophone: Low impedance : 47 kohms - 2mV / 1000 Hz
 High impedance: 2,2 mohms - 75 mV / 1000 Hz
 Outputs Extension speaker - 4 ohms
 Radio: 4,7 kohms - 0.6 V max.
 Dimensions H x W x D 20,2 x 45,5 x 29,5 cm
 Weight 13,2kg

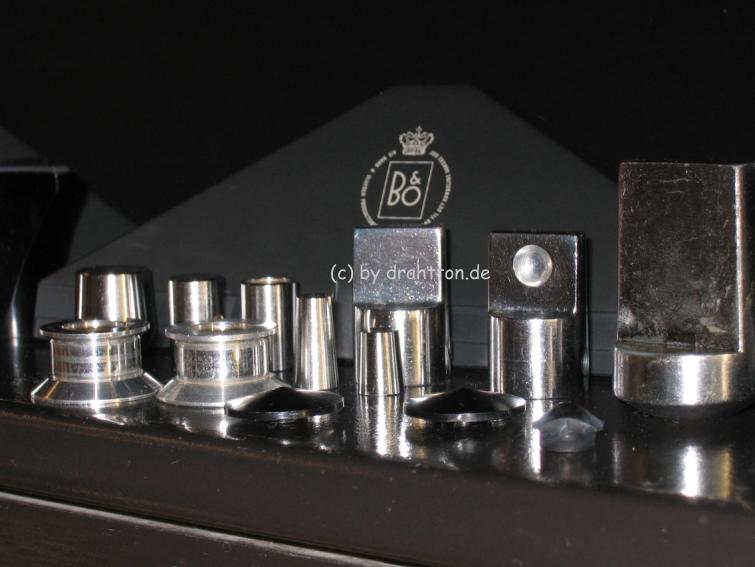

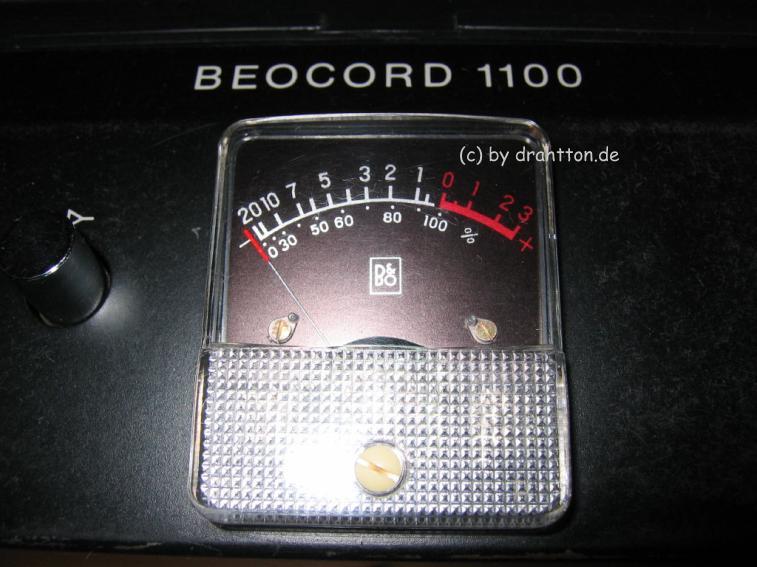

Für mich eines der schönsten VU-meter überhaupt!

Edelmetall massiv und verchromt
